Product Overview

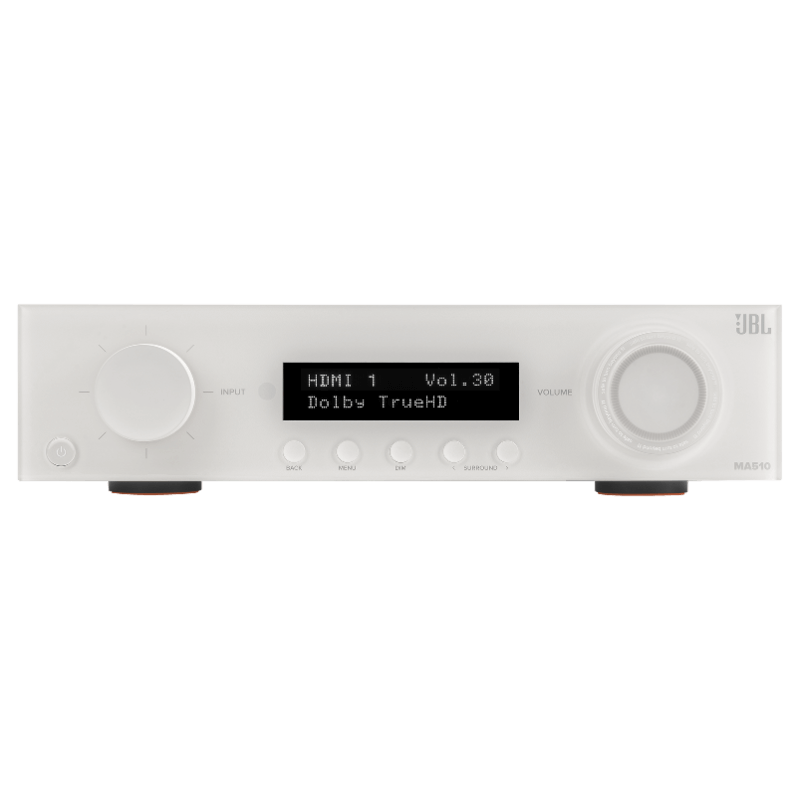

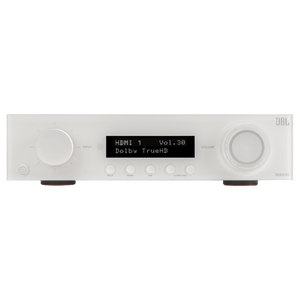

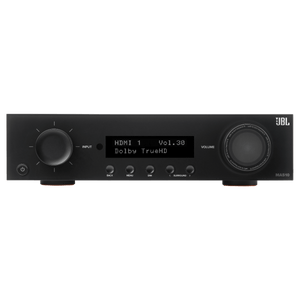

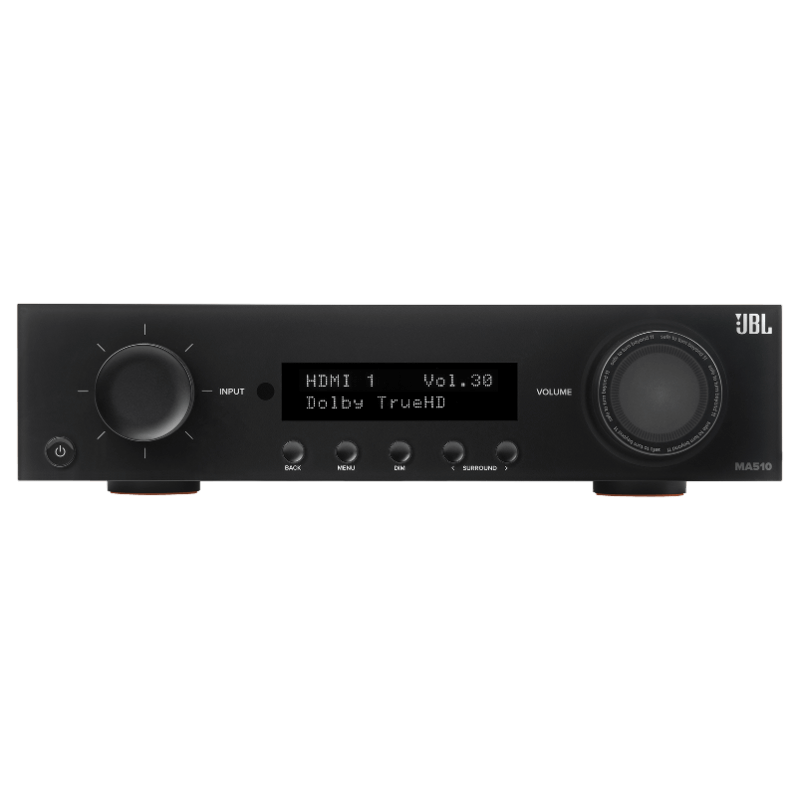

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

Highlights

  • 5.2-channel AV receiver that delivers extraordinary audio performance with 8K video for the ultimate home cinema experience
  • Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC
  • Native 5-channel decoding of Dolby and DTS formats
  • Designed with a passion for music and movies, bringing both to life with true high fidelity
  • Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
  • On-screen display for easy system setup and operation (via HDMI)
  • Five channels of low noise Class D amplification for real world power to all channels
  • EZ Set EQ provides easy-to-use room equalization for optimized sound quality

Key Specifications

  • Channels: 5.2
  • Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 75 W RMS
  • Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 100 W RMS
  • HDMI eARC: Yes
  • HDMI Audio Return Channel: Yes
  • 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 4
  • HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
  • HDR 10+, Dolby Vision: Yes , Yes
  • File format: MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps
  • WMA: up to 48 kHz / 192kbps
  • ALAC: up to 192 kHz / 24-bit
  • FLAC: up to 192 kHz / 24-bit
  • PCM / WAV / AIFF: up to192 kHz / 24-bit
  • Pure Direct: Yes
  • EZ/Set EQ: Yes
  • DA converter: 192kHz/24-bit
  • HDMI Input/Output: 4 / 1
  • Wi-Fi: Yes (2.4 / 5GHz)
  • Bluetooth receive: Yes (v4.1, Low Energy)

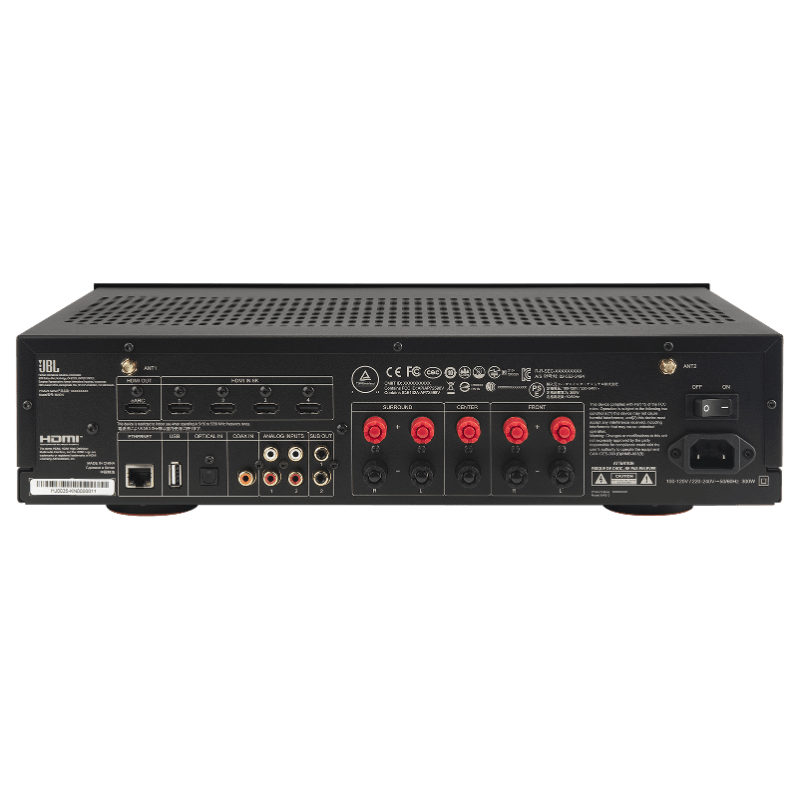

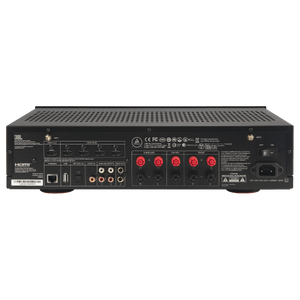

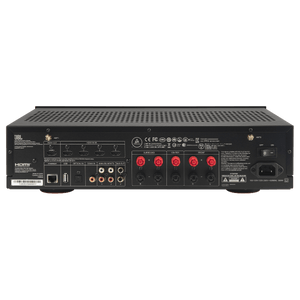

  • Digital Audio Input: 1 Coax, 1 Optical
  • Stereo analog input: 2 single-ended RCA
  • Pre-Out (single ended RCA): Subwoofer 1, Subwoofer 2
  • Mains voltage: 110 – 240V, 50–60Hz
  • Max. power consumption: 300W
  • Standby power consumption: <0.5W
  • Dimensions incl. feet and speaker terminals (H x W x D): 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm)
  • Weight: 12lb (5.4kg)

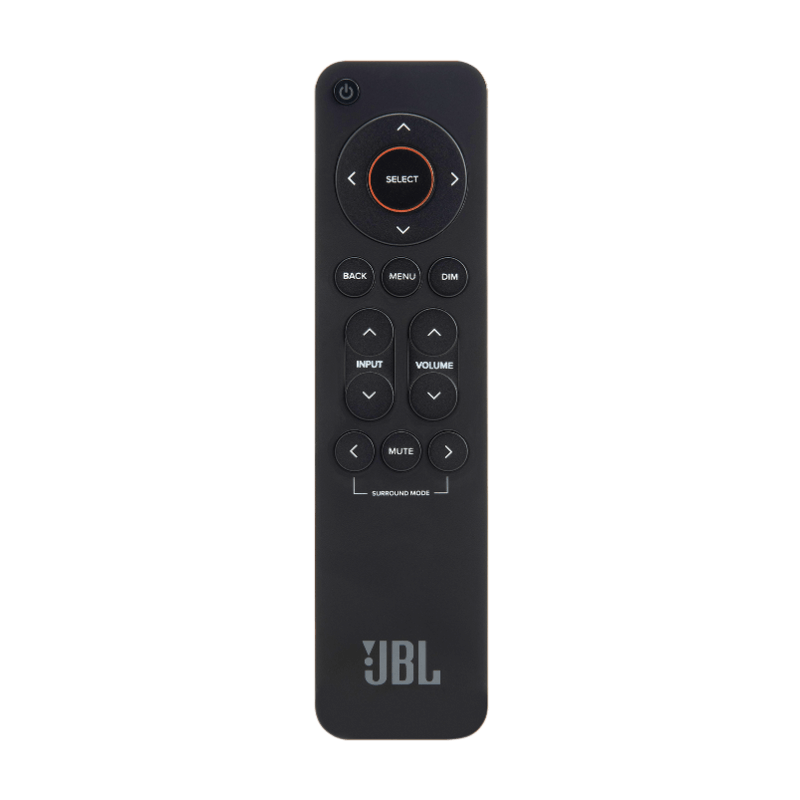

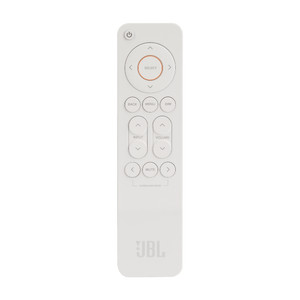

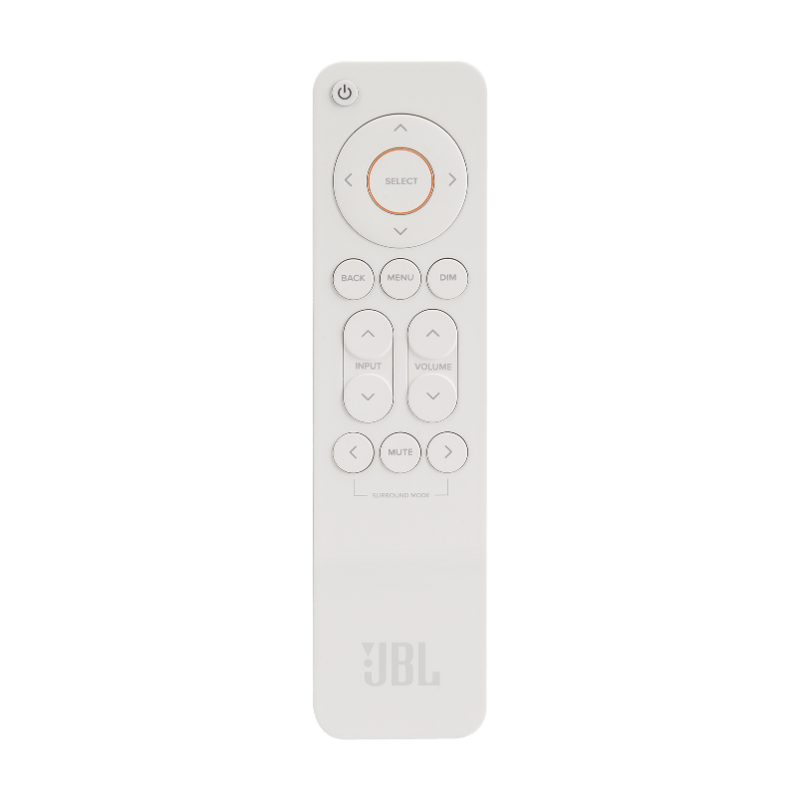

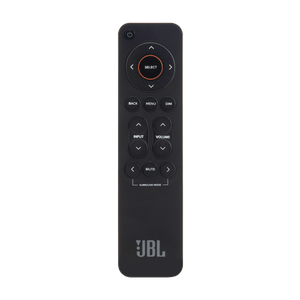

  • Supplied accessories: IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord
